RSD-GE10 Series
Unleash The
Power of Pressure
with Our
Plunger Pumps

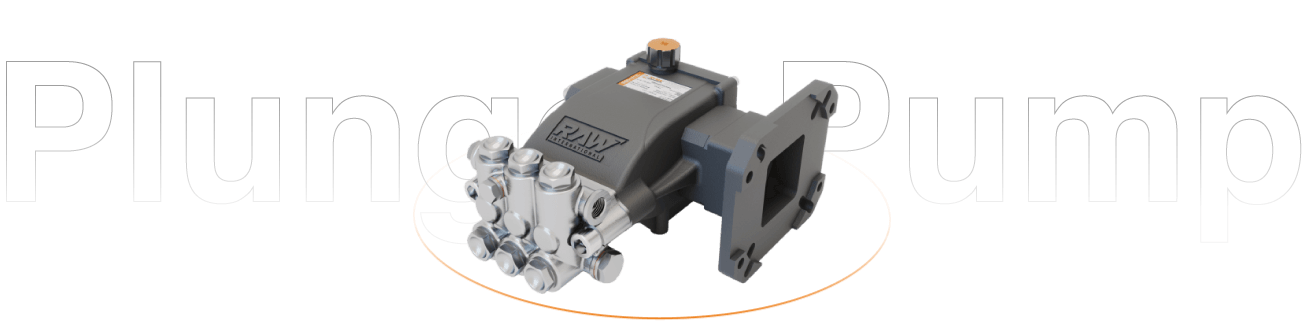

The RSD-GE10 pumps are highly versatile, capable of efficiently operating at a maximum pressure of 200 bar and handling water temperatures of up to 65°C (150F). This particular version is equipped with a flange designed for coupling with a combustion engine, making it an ideal choice for professional high-pressure washers. It excels in situations where a reliable electricity supply is limited, ensuring efficient operation.
Suitable application for RSD-GE10 :
Pressure Washer
Municipal Cleaning
Technical Specification
Weight (Kg)
8.9
Oil Capacity (Ltr.)
0.4
Inlet (Inch)
1/2″
Outlet (Inch)
3/8”
Material
Power End : Aluminum
Liquid End : SS 304
Liquid End : SS 304
Discover all the variants in the series RSD-GE10.
| Pump Code | Pump Model | MAX. PRESSURE | MAX. VOLUME | RPM | MAX. POWER | Shaft Ø Inch | |||
|---|---|---|---|---|---|---|---|---|---|
| BAR | PSI | l/min | GPM | 60 Hz | HP | KW | |||
| 751101 | RSD1121G1R | 210 | 3050 | 11.4 | 3.0 | 3400 | 6.1 | 4.5 | 1" |
| 751102 | RSD1121G1L | 210 | 3050 | 11.4 | 3.0 | 6.1 | 4.5 | 1" | |
| 751103 | RSD1321G1R | 210 | 3050 | 13 | 3.4 | 6.9 | 5.1 | 1" | |
| 751104 | RSD1321G1L | 210 | 3050 | 13 | 3.4 | 6.9 | 5.1 | 1" | |
| 751105 | RSD1421G1R | 210 | 3050 | 14.4 | 3.8 | 7.7 | 5.6 | 1" | |
| 751106 | RSD1421G1L | 210 | 3050 | 14.4 | 3.8 | 7.7 | 5.6 | 1" | |
